McCormick X4 TF/TM at Farm and Fleet Services

Specialist crawler tractors built for orchards and mountain work

The McCormick X4 TF/TM range is designed for operators who need the grip, stability and control that only a crawler tractor can deliver. Built for orchard work in the F version and mountain work in the M version, this Stage V range combines strong performance with operator comfort, modern safety features and practical versatility.

At Farm and Fleet Services, we are proud to supply McCormick tractors across Cornwall and West Devon. As your trusted local dealership, we can help you choose the right X4 TF/TM model for your land, working conditions and daily workload.

Overview

The McCormick X4 TF/TM crawler tractor range is built for demanding specialist environments where traction, balance and dependable performance matter most. Whether you are working on slopes, in orchards or in tough underfoot conditions, the X4 TF/TM is designed to stay productive and composed.

Key benefits of the range include:

• Stage V crawler tractor range
• Built for orchards in the F version
• Built for mountain work in the M version
• Strong traction with a choice of steel or rubber tracks
• Good operator comfort with reduced heat and vibration
• Practical transmission options for slow work or faster travel
• Strong hydraulic and lifting capability for specialist tasks

Crawler Configurations

The X4 TF/TM range is available in two main versions to suit different working conditions.

X4 TF

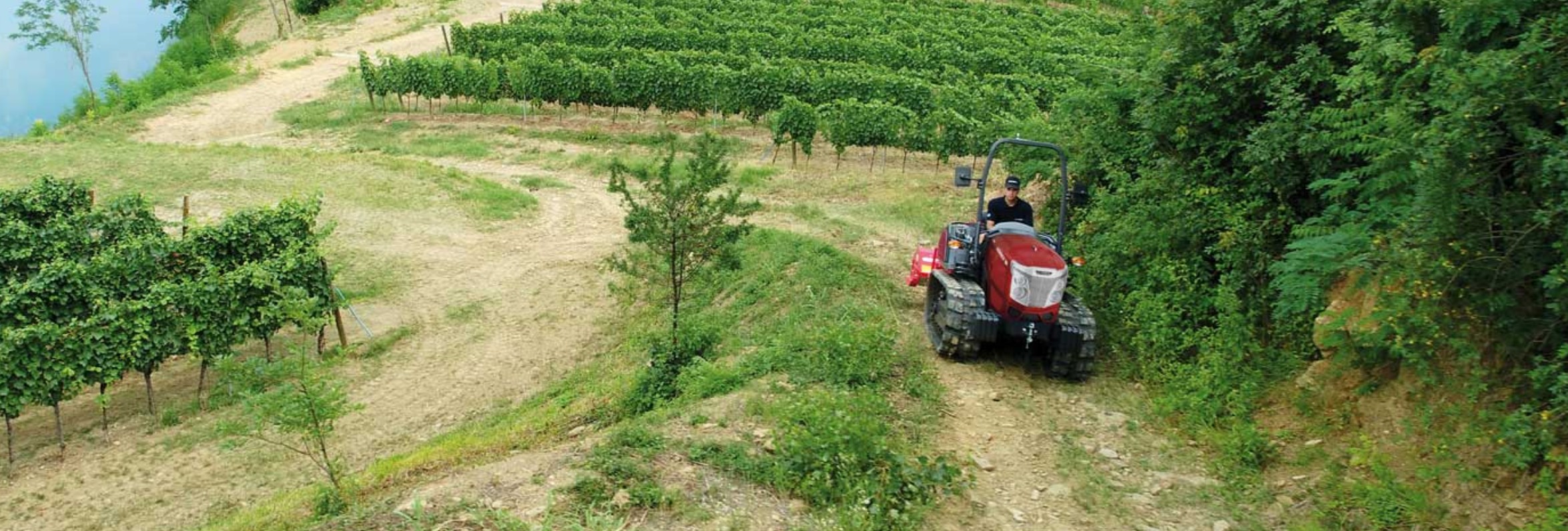

The F version is designed for orchard applications, where compact width, stability and precise control are essential.

X4 TM

The M version is built for mountain work, giving operators a wider stance and the sure-footed performance needed on more demanding terrain.

This choice helps you match the tractor to the job, whether you need a crawler for tighter specialist work or for sloping, uneven ground.

Engine and Power

The McCormick X4 TF/TM range includes five models:

• X4.085 TF/TM
• X4.095 TF/TM
• X4.105 TF/TM
• X4.110 TF/TM
• X4.120 TF/TM

Power runs from 75 hp to 112 hp, giving you a strong spread of options for different workloads and operating conditions.

Engine and emissions features include:

• Stage V compliance
• Passively regenerating DPF
• DOC
• SCR with 10.5-litre AdBlue tank on models over 56 kW
• 85-litre fuel tank

This setup is designed to deliver modern emissions compliance without losing the dependable performance needed for specialist crawler work.

Transmission and Traction

The X4 TF/TM uses a 16 forward and 8 reverse transmission with synchro reverse shuttle, giving operators practical speed choice and smooth direction changes.

Transmission options include:

• Standard 16 forward / 8 reverse setup
• Optional overdrive for speeds up to 15 km/h
• Optional creeper for speeds down to 300 metres per hour

This makes the range suitable for both careful low-speed work and more efficient travel where conditions allow.

The crawler layout gives the X4 TF/TM the grip and stability needed for steep ground, specialist orchard work and difficult field conditions where wheeled tractors may struggle.

Operator Environment and Safety

Operator comfort is a major strength of the X4 TF/TM range. The platform is completely suspended from the wagon and engine compartment, helping to insulate the operator from heat and vibration and making long working days more manageable.

Visibility and ergonomics are also improved through an updated driving position and redesigned control layout.

For operators who need a higher level of protection, a Category 4 cab is available. This offers:

• Pressurisation
• Enhanced ventilation
• Active carbon filters
• Protection from dust, pollutants and gases
• Added safety during plant protection work

This makes the X4 TF/TM a strong choice for operators working in vineyards, orchards and other specialist environments where exposure protection is important.

Hydraulics and Lifting

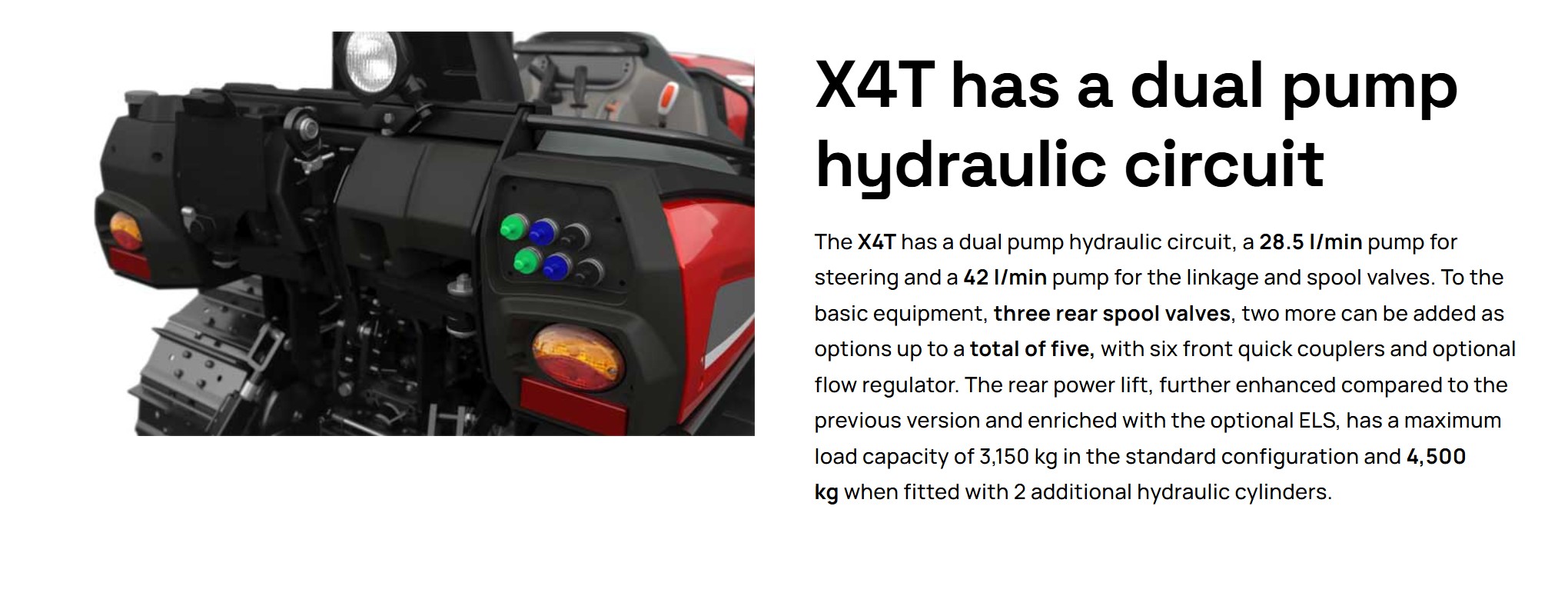

The McCormick X4 TF/TM is equipped with a dual pump hydraulic circuit designed to support both steering and implement performance.

Hydraulic features include:

• 28.5 litres per minute for steering
• 42 litres per minute for linkage and spool valves
• Three rear spool valves as standard
• Up to five total spool valves
• Optional six front quick couplers
• Optional flow regulator

Rear lifting performance includes:

• 3150 kg rear lift capacity in standard form
• Up to 4500 kg with two additional hydraulic cylinders
• Optional ELS

This gives the X4 TF/TM the hydraulic capacity needed for a wide range of specialist implements and heavier working demands.

Dimensions and Track Options

Track choice is an important part of matching the X4 TF/TM to the job.

Steel tracks

For the F version with 1100 mm track width, semi-lubricated steel tracks are available in:

• 310 mm
• 360 mm

For the M version with 1300 mm track width, steel tracks are available in:

• 400 mm
• 450 mm

Rubber tracks

Rubber tracks are 400 mm wide for both versions, with:

• 1132 mm track width on the F model
• 1300 mm track width on the M model

Key dimensions and weights

• Max overall width, F version: 1410 mm, 1460 mm or 1532 mm
• Max overall width, M version: 1700 mm or 1750 mm
• Shipping weight, F version: 3900 kg
• Shipping weight, M version: 4500 kg

These options give operators the flexibility to choose the right setup for orchard rows, hillside work and ground conditions.

Model Options

X4.085 TF/TM

A practical entry model with 75 hp, suited to lighter specialist crawler applications.

X4.095 TF/TM

Offers more output for operators needing extra performance in demanding conditions.

X4.105 TF/TM

A strong mid-range option for mixed specialist workloads.

X4.110 TF/TM

Built for customers who need more power for harder pulling and heavier implements.

X4.120 TF/TM

The top model in the range, delivering up to 112 hp for the most demanding crawler applications.

Why Buy from Farm and Fleet Services

Farm and Fleet Services is the trusted McCormick dealership for Cornwall and West Devon. We understand that specialist tractor buyers need more than a brochure. You need practical advice, dependable support and machinery that fits the way you work.

When you buy from us, you benefit from:

• Expert guidance on the right McCormick crawler tractor
• Help choosing the best TF or TM configuration
• Friendly local support from a knowledgeable team
• Advice on pricing, specification and availability
• Reliable aftersales backup you can count on

We work with customers across Cornwall and West Devon to supply machinery that performs well in real working conditions.

Contact Farm and Fleet Services

If you are looking for a specialist crawler tractor for orchard work, mountain work or demanding ground conditions, the McCormick X4 TF/TM range is well worth a closer look.

Contact Farm and Fleet Services today for pricing, availability, or to arrange a demo in Cornwall and West Devon.
