McCormick X4 F/N/V/XL at Farm and Fleet Services

Specialist tractors built for orchards, vineyards and narrow working environments

The McCormick X4 F/N/V/XL range is designed for growers and specialist operators who need the right mix of power, control and compact agility. Built for row-crop work in orchards and vineyards, this range combines modern technology, strong traction and lightweight manoeuvrability to work confidently in tight spaces.

At Farm and Fleet Services, we are proud to supply McCormick tractors across Cornwall and West Devon. As your trusted local dealership, we can help you choose the right X4 specialist model for your crops, row widths and day-to-day workload.

Overview

The McCormick X4 F/N/V/XL range is engineered for specialist applications where precision, visibility and compact dimensions matter. Whether you are working between orchard rows, moving through vineyards or handling specialist mounted equipment, these tractors are designed to stay productive in challenging spaces.

Key benefits of the range include:

• Built for orchards, vineyards and row-crop work
• Compact and lightweight for tight spaces
• Strong traction and stable handling
• Modern cab comfort and operator technology
• Smooth transmission control for varied working conditions
• Good road comfort between sites
• Specialist configurations to suit different crop and row widths

Engine and Power

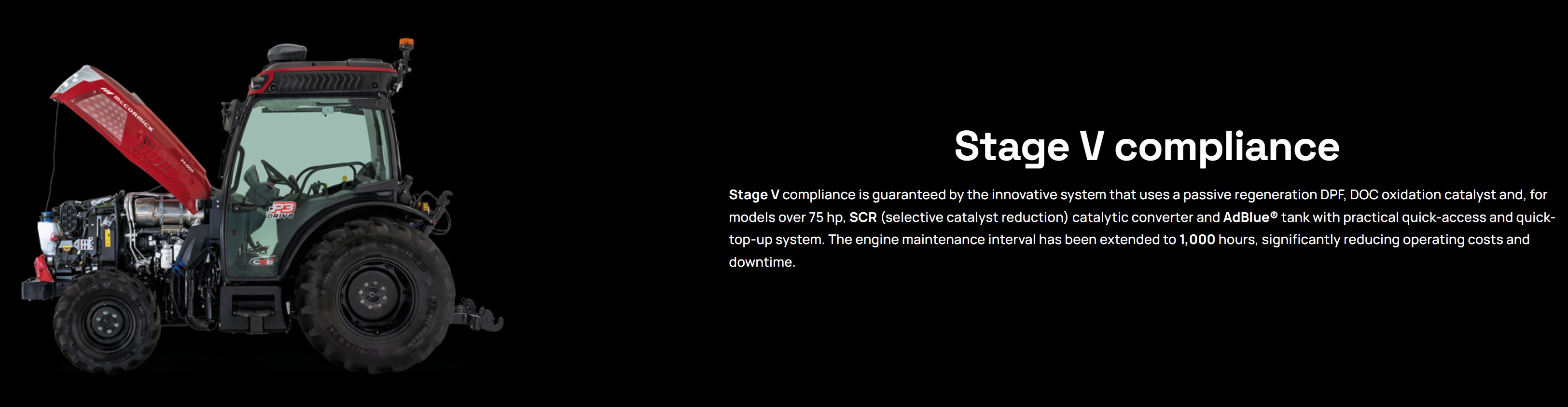

The X4 F/N/V/XL range uses 2.9-litre four-cylinder Deutz engines designed to deliver responsive performance, efficient operation and dependable pulling power. The range is Stage V compliant and offers maintenance intervals extended to 1000 hours, helping reduce downtime and support lower running costs.

Model options include:

• X4.080 – up to 75 hp
• X4.090 – up to 90 hp
• X4.100 – up to 95 hp
• X4.110 – up to 102 hp
• X4.120 – up to 112 hp

This spread of power gives growers a clear choice, from lighter specialist duties through to more demanding applications requiring extra output and traction.

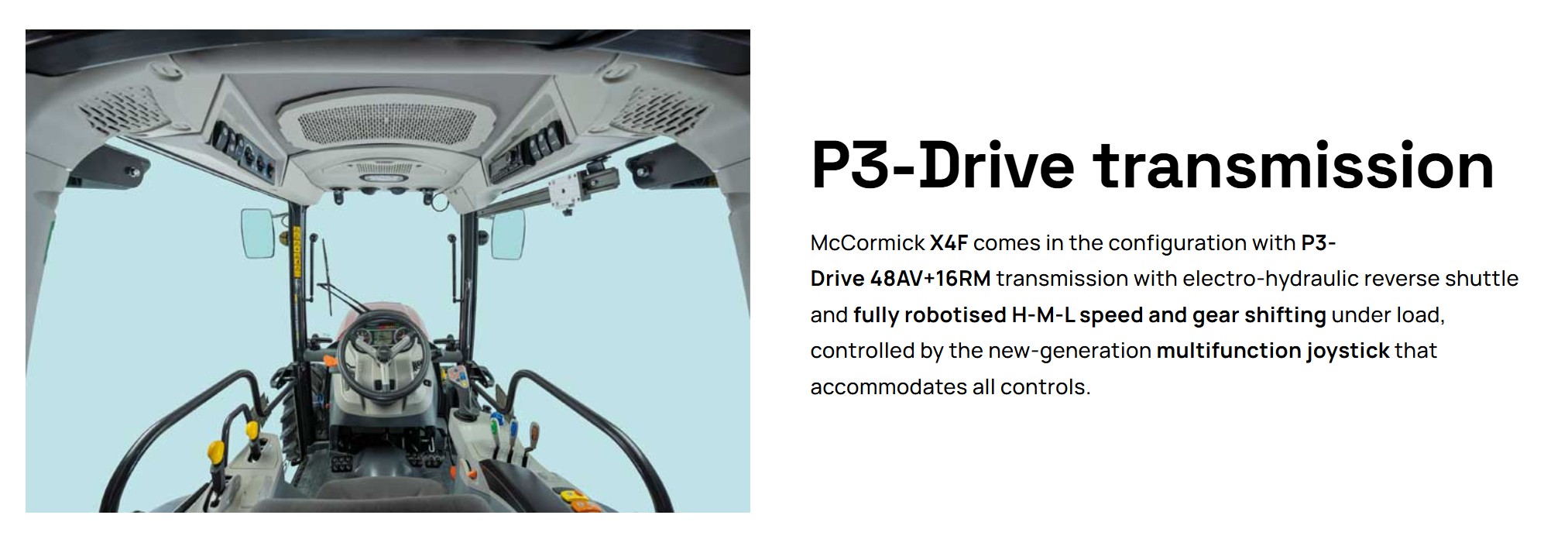

P3-Drive Transmission

The P3-Drive transmission is built to give operators smooth, precise control across a wide range of tasks. It offers 48 forward and 16 reverse speeds, making it easy to match the tractor to the job and working conditions.

Key transmission features include:

• 48 forward and 16 reverse speeds
• Electro-hydraulic reverse shuttle
• Robotised H-M-L shifting
• Control through a multifunction joystick

This setup helps make repeated speed changes easier, improves comfort during long working days and gives operators better control in narrow rows, on headlands and during transport.

Cab Comfort and Control

The Premiere Cab is designed to provide a comfortable, well laid out working environment for specialist operators who spend long hours in the seat. Its four-post design gives excellent all-round visibility, which is especially important in orchards, vineyards and other narrow operating environments.

Cab and control highlights include:

• Premiere Cab with four-post design
• Mechanical cab suspension
• Suspended front axle
• ADS Advanced Driving System
• Air suspension seat
• Climate control
• Compatibility with satellite guidance and telemetry

Together, these features help improve comfort, reduce fatigue and give the operator more control both in the row and on the road. The result is a tractor range that feels precise in specialist work and composed during transport.

Hydraulics and Productivity

The X4 F/N/V/XL range is designed to work efficiently with modern specialist implements. Its open-centre hydraulic system provides the oil flow needed for productive day-to-day operation while maintaining smooth steering control.

Hydraulic performance includes:

• 30 litres per minute for steering
• 58 litres per minute for hydraulic services
• Optional tandem pump output up to 94 litres per minute

This added hydraulic flexibility helps the tractor handle more demanding equipment and supports productive operation in applications where multiple hydraulic functions may be needed.

Dimensions and Specialist Configurations

A major strength of the McCormick X4 F/N/V/XL range is its choice of specialist formats. Different versions are available to suit different crop types, working widths and operator preferences.

Width options

Depending on version, overall width ranges as follows:

• F: 1355 mm to 1770 mm
• N: 1305 mm to 1775 mm
• V: 1000 mm to 1680 mm
• XL: 1500 mm to 1945 mm

Wheelbase

• F / N / XL: 2140 mm
• V: 2190 mm

Weight

• Shipping weight: from 2900 kg to 3250 kg
• Gross vehicle weight: 5250 kg

This range of sizes helps growers choose the right tractor for narrow row work, specialist crop conditions and the need for stability, traction and comfort.

Model Options

The McCormick X4 F/N/V/XL specialist range includes five core power levels:

X4.080

Up to 75 hp, ideal for lighter specialist applications where compact size and agility are key.

X4.090

Up to 90 hp, offering a strong balance of manoeuvrability and extra working capacity.

X4.100

Up to 95 hp, well suited to growers wanting practical all-round specialist performance.

X4.110

Up to 102 hp, a strong option for more demanding implement work and longer working days.

X4.120

Up to 112 hp, the top model in the range for customers needing maximum performance in a specialist tractor platform.

Why Buy from Farm and Fleet Services

Farm and Fleet Services is the trusted McCormick dealership for Cornwall and West Devon. We understand that specialist operators need more than just horsepower. You need the right width, the right setup and the right support behind the machine.

When you buy from us, you benefit from:

• Expert advice on the right McCormick specialist tractor
• Help choosing the best F, N, V or XL configuration
• Friendly local support from a knowledgeable team
• Guidance on pricing, specification and availability
• Reliable aftersales service and backup

We work closely with farmers, growers and land-based businesses to supply machinery that suits real working conditions.

Contact Farm and Fleet Services

If you are looking for a specialist tractor that delivers power, traction, road comfort and precise control in narrow working environments, the McCormick X4 F/N/V/XL range is well worth a closer look.

Contact Farm and Fleet Services today for pricing, availability, or to arrange a demo in Cornwall or West Devon.
